The
Model 52

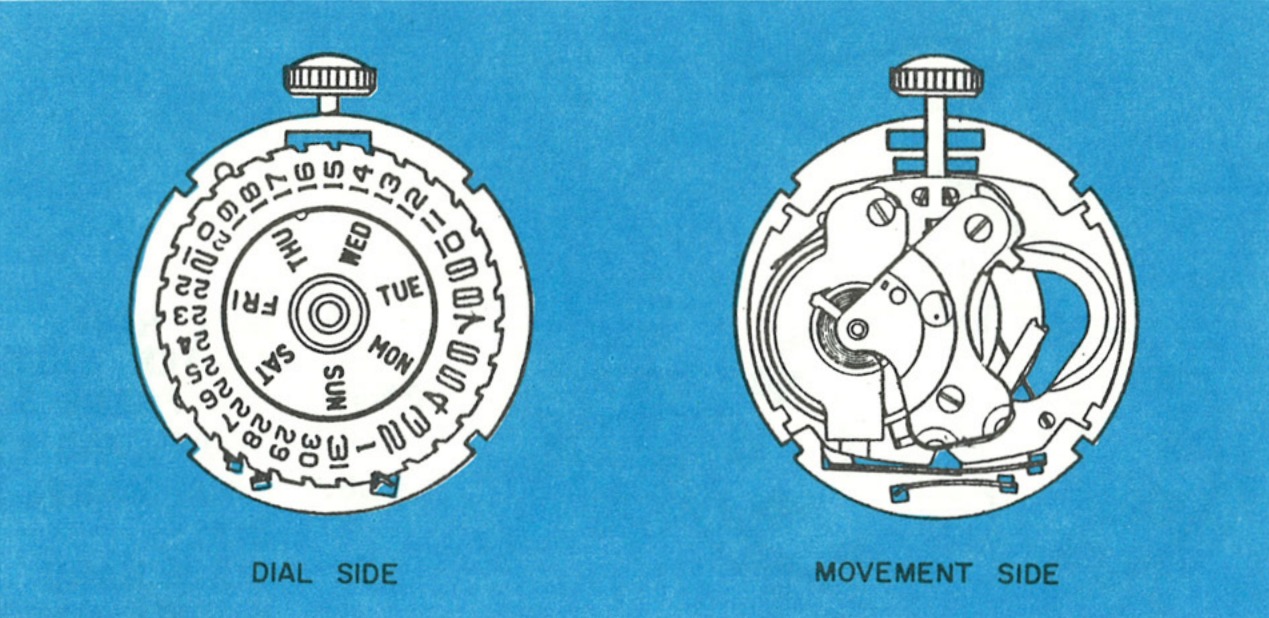

Two Motions, Two Displays

The Timex Model 52 is a 13½ ligne electronic day-date movement. The Model 52 movement is similar to the Model 50 movement except that a calendar and a day mechanism have been added. Power from a miniature energy cell drives the balance, and the balance drives the time train which, in turn, rotates the hands.

Basic servicing techniques are similar to those used for the Model 50, except that all hands must be removed prior to removing the dial. For the electronic movement itself, see the Model 50 guide. The day-date work is the same as the electric Model 42.

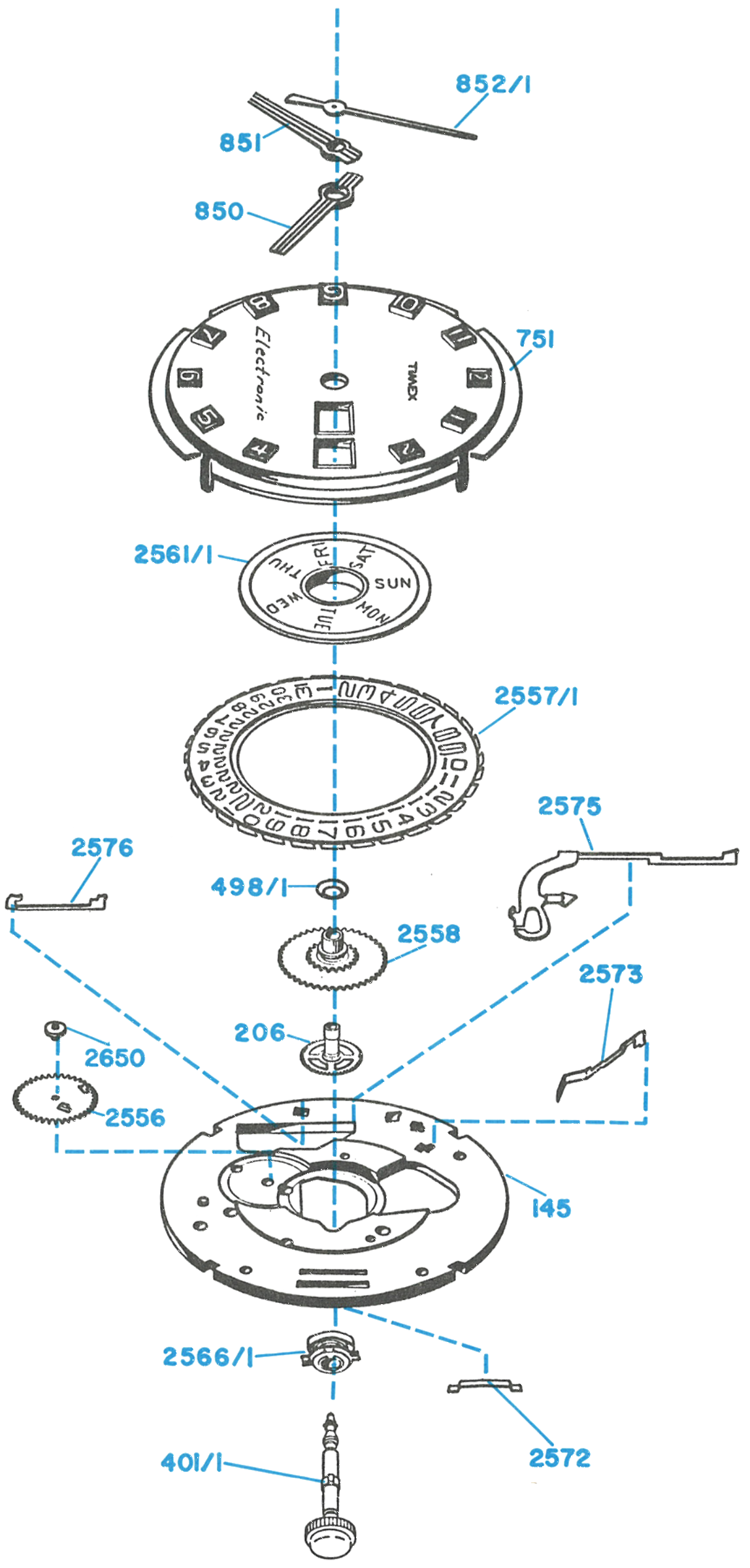

Exploded View

Everything below the numbered parts is the Model 50 electronic movement.

Model 52 · Day-Date Parts

Ref.Component

145Dial Rest

206Center Wheel

401/1Crown and Stem Assembly

498/1Hour Wheel Washer

751Dial

850Hour Hand

851Minute Hand

852/1Sweep Second Hand

2556Date Wheel

2557/1Date Ring

2558Hour Wheel

2561/1Day Frame Assembly

2566/1Date Set Disc Assembly

2572Date Set Detent Spring

2573Day Detent Spring

2575Date Lever

2576Date Click Spring

2650Date Wheel Stud

Disassembly

Out of the Case

1

Remove, in order as described for the Model 50, the caseback, energy cell, movement cover, and crown and stem assembly.

2

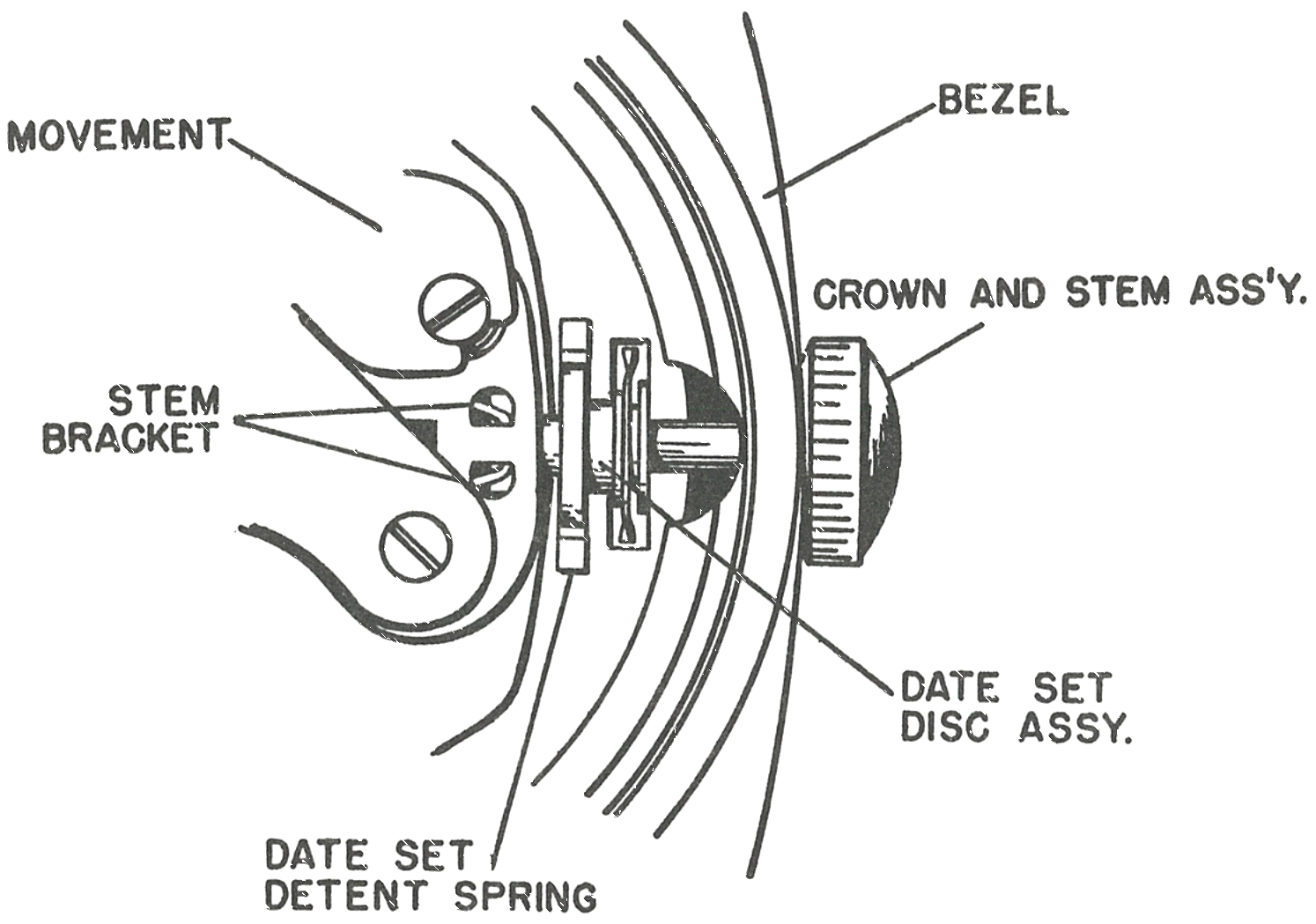

Be careful to pick out the date set disc assembly and the date set detent spring after the crown and stem assembly is removed.

3

Turn the watch over and with a crystal lift remove the crystal from the bezel, lift out the reflector ring and then remove the dial and movement assembly. Note the position of the movement locating tabs inside the bezel to make reassembly easier.

Fig. 52.3 · Figure 1

Off the Dial

4

Remove all hands from the assembly. Turn the movement over and, while holding the dial in place, bend the four dial legs up just enough to permit removal of the dial.

5

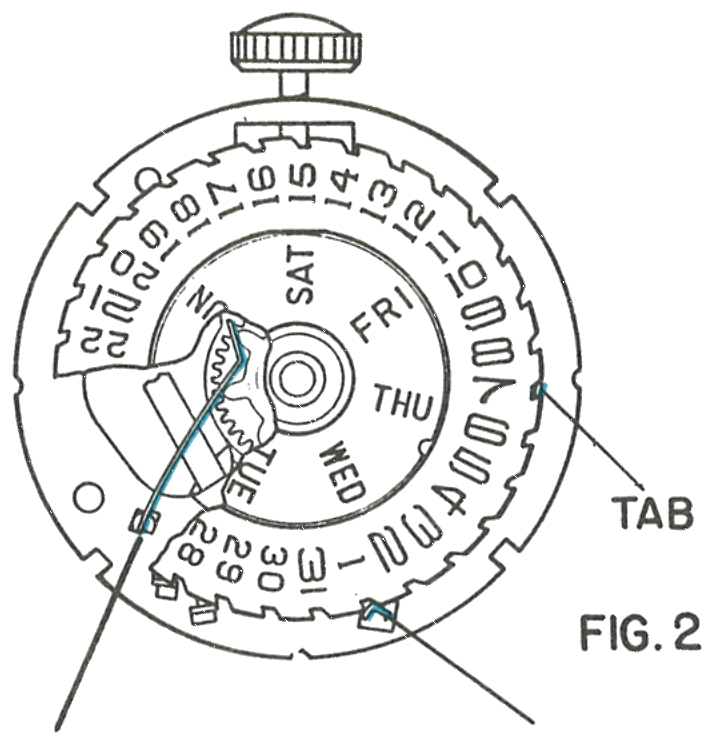

Turn the movement over so the dial is up and carefully lift off the dial. Note the position of the loose parts under the dial.

6

Remove in order: hour wheel washer, day frame assembly, date ring, day detent spring, date wheel stud, date wheel, hour wheel, center wheel.

Note: It is not necessary to remove the date lever and the date detent spring. The movement assembly may then be disassembled and serviced as detailed for the Model 50.

Fig. 52.4 · Figure 2

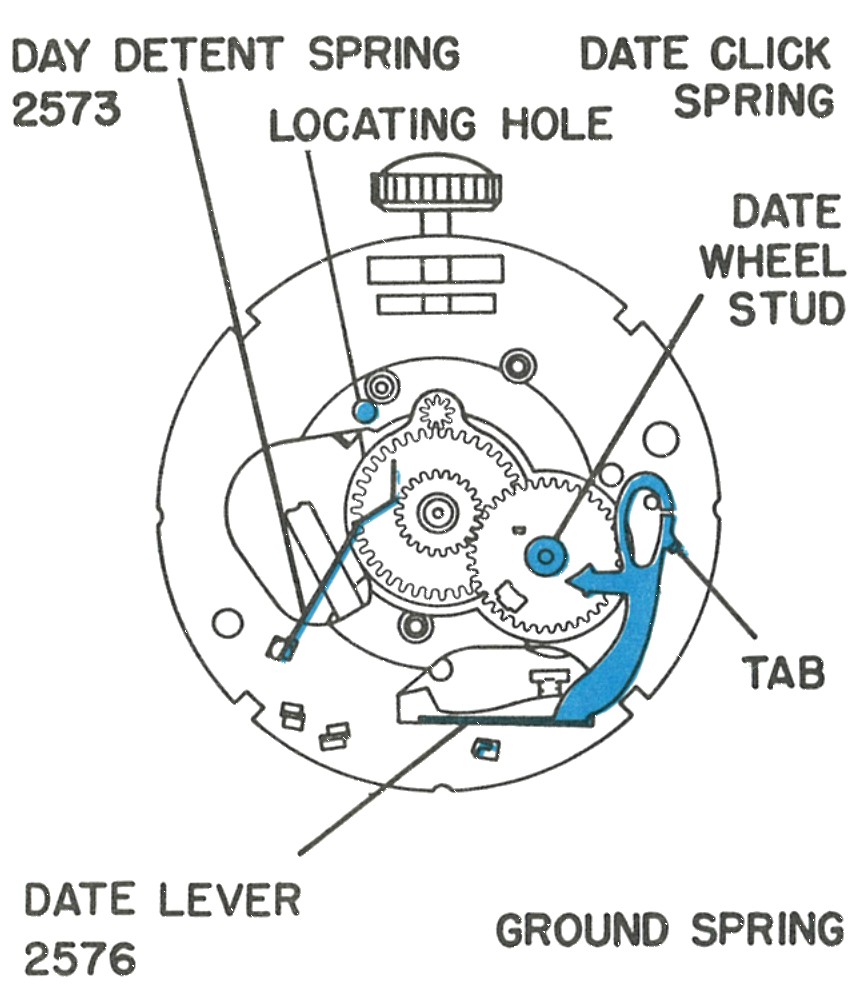

Under the Day Frame

•

The day detent spring 2573, the date click spring, the locating hole, the date wheel stud, the tab and the date lever 2576.

Fig. 52.4 · Figure 3

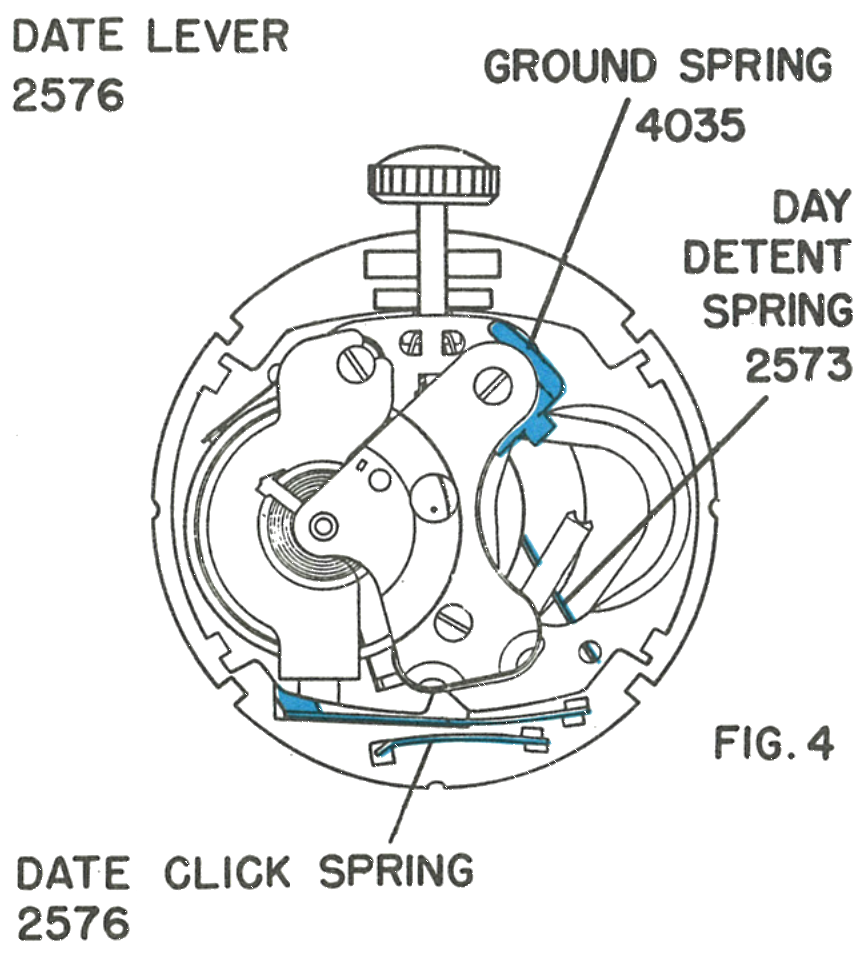

The Ground Spring

•

The energy cell ground spring 4035, the day detent spring 2573 and the date click spring 2576.

Fig. 52.4 · Figure 4

Reassembly

First engage the setting stem and crown into the movement, but do not put in the date set disc assembly and date set detent spring at this time. Place the movement in the dial up position. Next, assemble in order: center wheel, hour wheel, date wheel, date wheel stud, hour wheel washer.

The Day Detent Spring

•

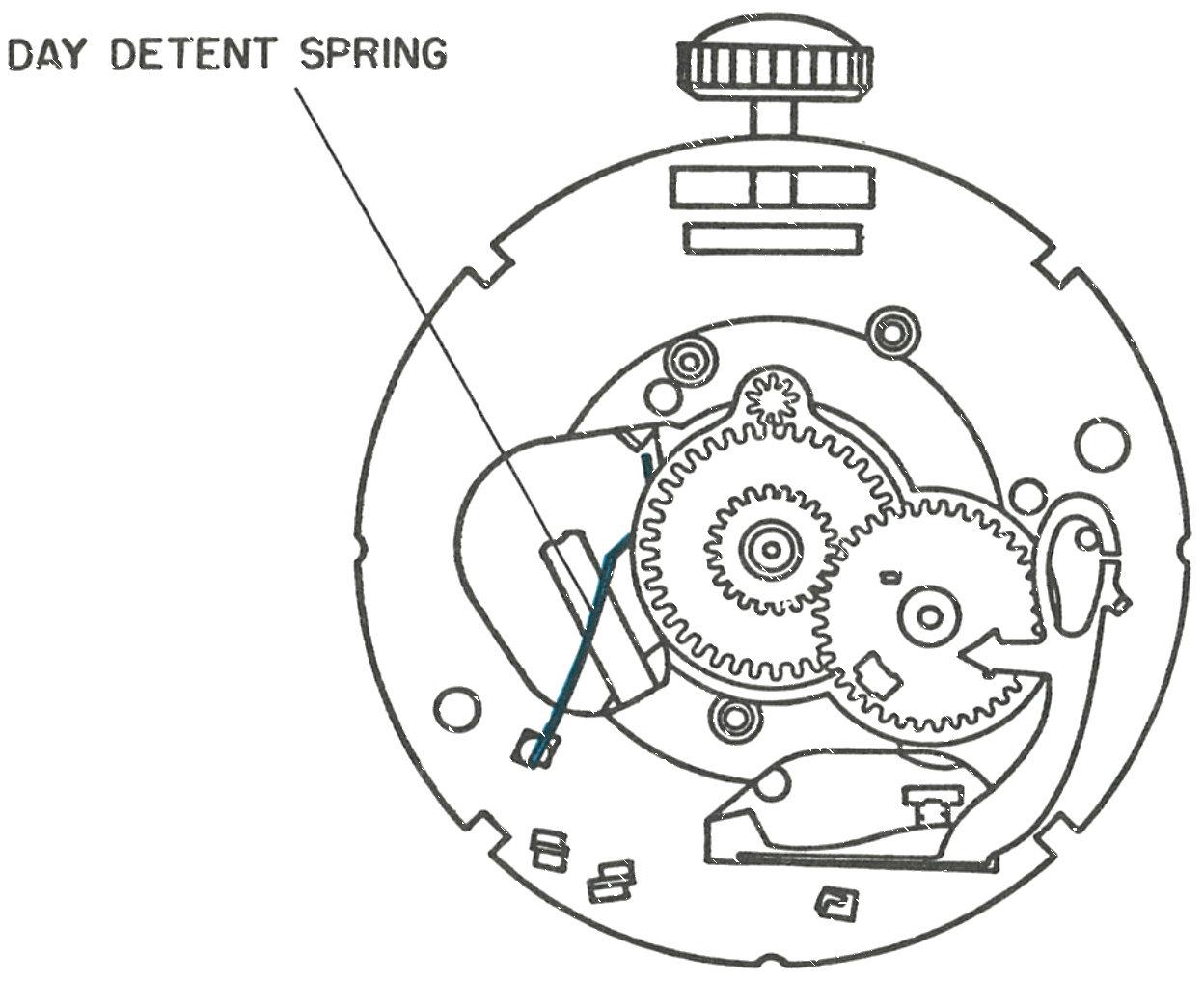

Insert the day detent spring into the proper slot in the dial rest and carefully deflect the end of the spring until it can be temporarily hooked under the edge of the dial rest.

Fig. 52.5 · Figure 5

Visually examine the date ring to be sure it is not bent or damaged. Place the date ring on the dial rest and position it against the end of the date click spring and the tab on the date lever, as near the centre as possible.

Examine the day frame assembly for damage and be sure the pinion is free to turn. Note the flat on the edge of the day frame assembly. Holding the assembly so the flat is toward the crown and parallel to the slot in the dial rest, place it on the movement. Apply light pressure on the day frame and move it slightly until it is centred and drops into place on the date wheel stud and into the hole in the dial rest.

Carefully place the dial on the movement so the dial legs are in the slots, then, holding the dial firmly in place, turn the movement over and bend the legs to secure the assembly. With a tweezer or small screwdriver, reach through the movement and release the hooked end of the day detent spring.

Lubrication

Elgin M56B is the watch lubricant used in the factory. Apply a small amount of watch oil at these points:

Recasing & Checks

Remove the setting stem and crown assembly. Place the dial and movement into the bezel, being careful to position it so the movement locating tab is in the proper position. Position the reflector ring and replace the crystal.

Turn the watch over and place the date set detent spring in the slot in the dial rest. Position the date set disc assembly on the spring and insert the setting stem and crown through the bezel, through the date set disc and into the set position in the movement.

Examine the energy cell ground spring in the movement to be sure it is in the proper position to prevent a short circuit and to assure proper grounding.

Position the movement cover in the bezel, put in the Timex Energy Cell Type A and snap in the caseback. Push the crown into the run position and check that the watch runs, then test the function of the day change and the date change.
